System Architecture

Cortex is built on a layered architecture that ensures modularity, maintainability, and independent evolution of core components. The system follows modern software engineering practices with clear separation of concerns.

Core Design Principles

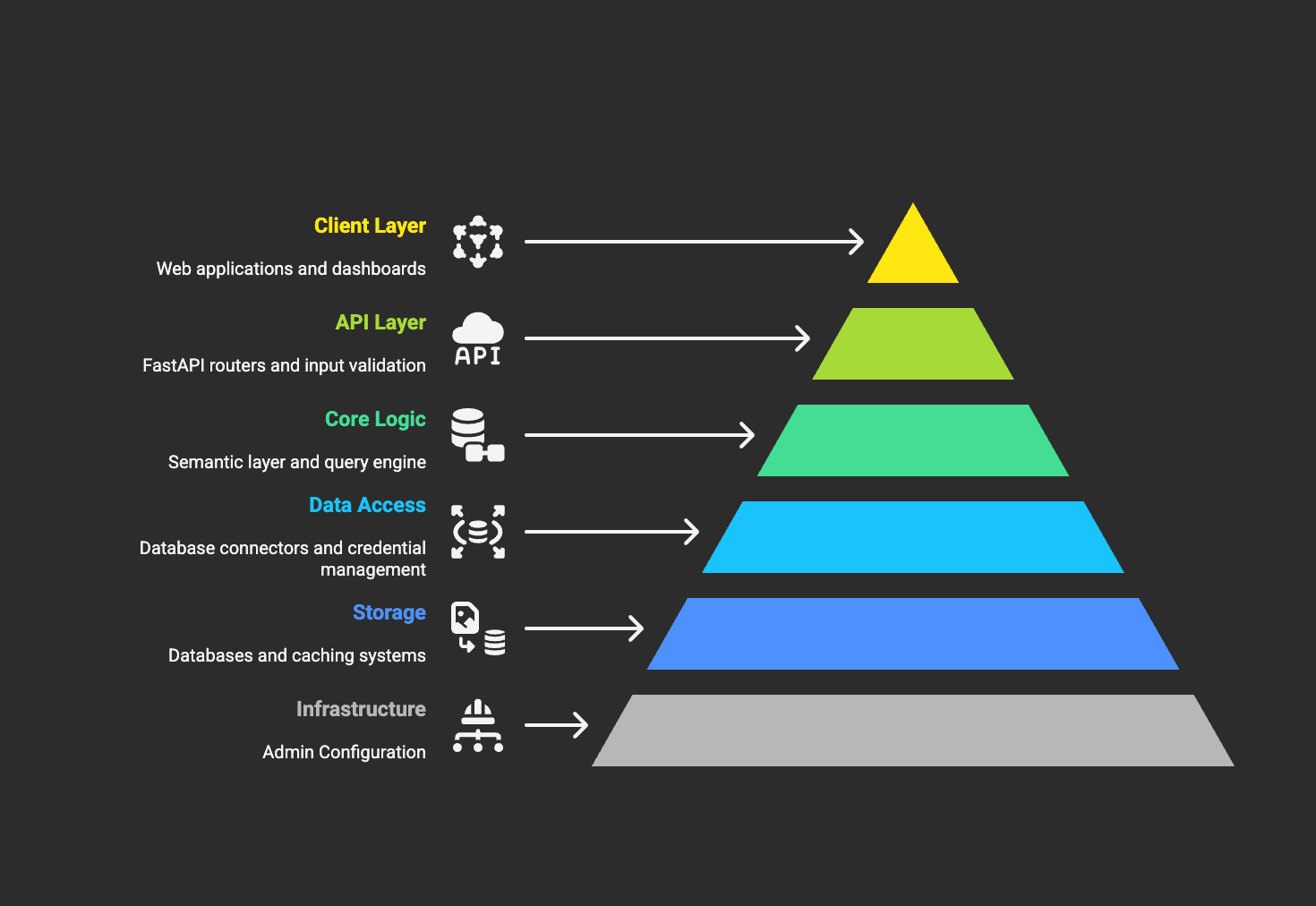

1. Layered Architecture

The system is organized into distinct layers, each with specific responsibilities:

• Client Layer: User interfaces and API consumers
• API Layer: REST endpoints and request/response handling
• Business Logic Layer: Core domain logic and rules
• Data Access Layer: Database abstraction and connectivity
• Storage Layer: Physical data persistence

2. Separation of Concerns

Each component has a single, well-defined responsibility:

• Semantic Layer: Business logic abstraction
• Query Engine: SQL generation and optimization
• Multi-Tenancy: Organization and access control
• Connectors: Database-specific implementations

3. Factory Pattern for Extensibility

The database connector system uses the factory pattern to support multiple database types:

# Example of connector factory usage
connector = DatabaseConnectorFactory.create(
    source_type="postgresql",
    config=connection_config
)

This allows easy addition of new database types without modifying existing code.

4. Type Safety First

Comprehensive use of Pydantic models throughout the system ensures:

• Runtime type validation
• Automatic API documentation generation
• IDE support and better developer experience
• Reduced runtime errors

Component Architecture

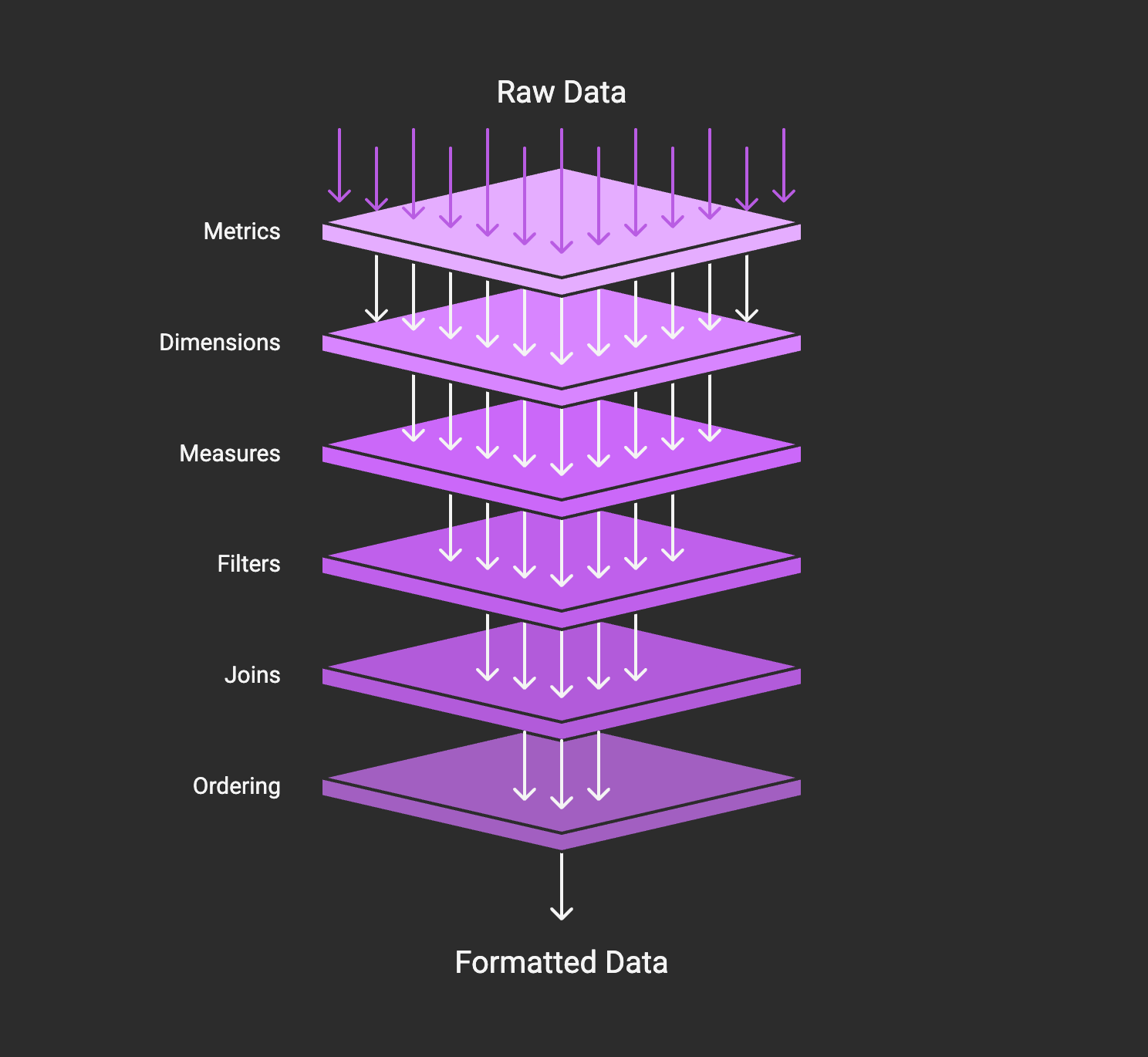

Semantic Layer

The semantic layer is the heart of Cortex, providing business-friendly abstractions over raw data:

Key Components:

• Data Models: Table and relationship definitions
• Metrics: Business calculations with measures and dimensions
• Dimensions: Grouping and filtering attributes
• Measures: Quantitative calculations (sum, count, average, etc.)
• Ordering: Result sorting with semantic order sequences

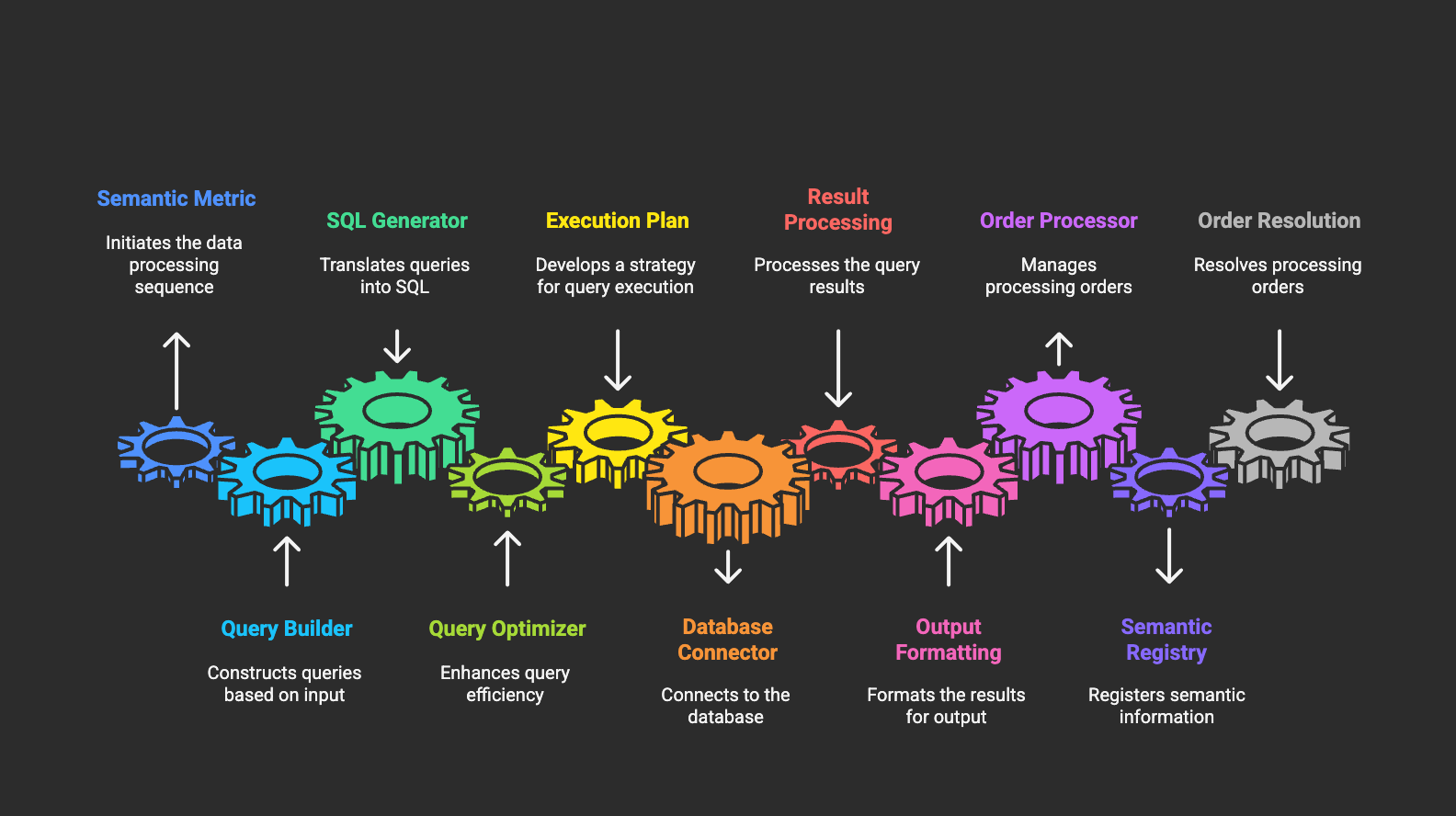

Query Engine

The query engine translates semantic definitions into optimized database queries:

Key Features:

• Multi-Database Support: Unified interface across different databases
• Query Optimization: Database-specific optimizations
• Real-time Formatting: Data transformation during and after execution
• Caching Integration: Query result caching for performance
• Semantic Ordering: Context-aware result sorting with order sequences

Multi-Tenant Architecture

Hierarchical organization supporting complex enterprise requirements:

Hierarchy Levels:

1. Organization/Tenant: Top-level isolation boundary
2. Workspace: Team or department-level grouping
3. Environment: Development, staging, production
4. Consumer Groups: Role-based access control
5. Consumers: Individual users
6. Data Sources: Database connections

Data Flow Architecture

Query Execution Flow

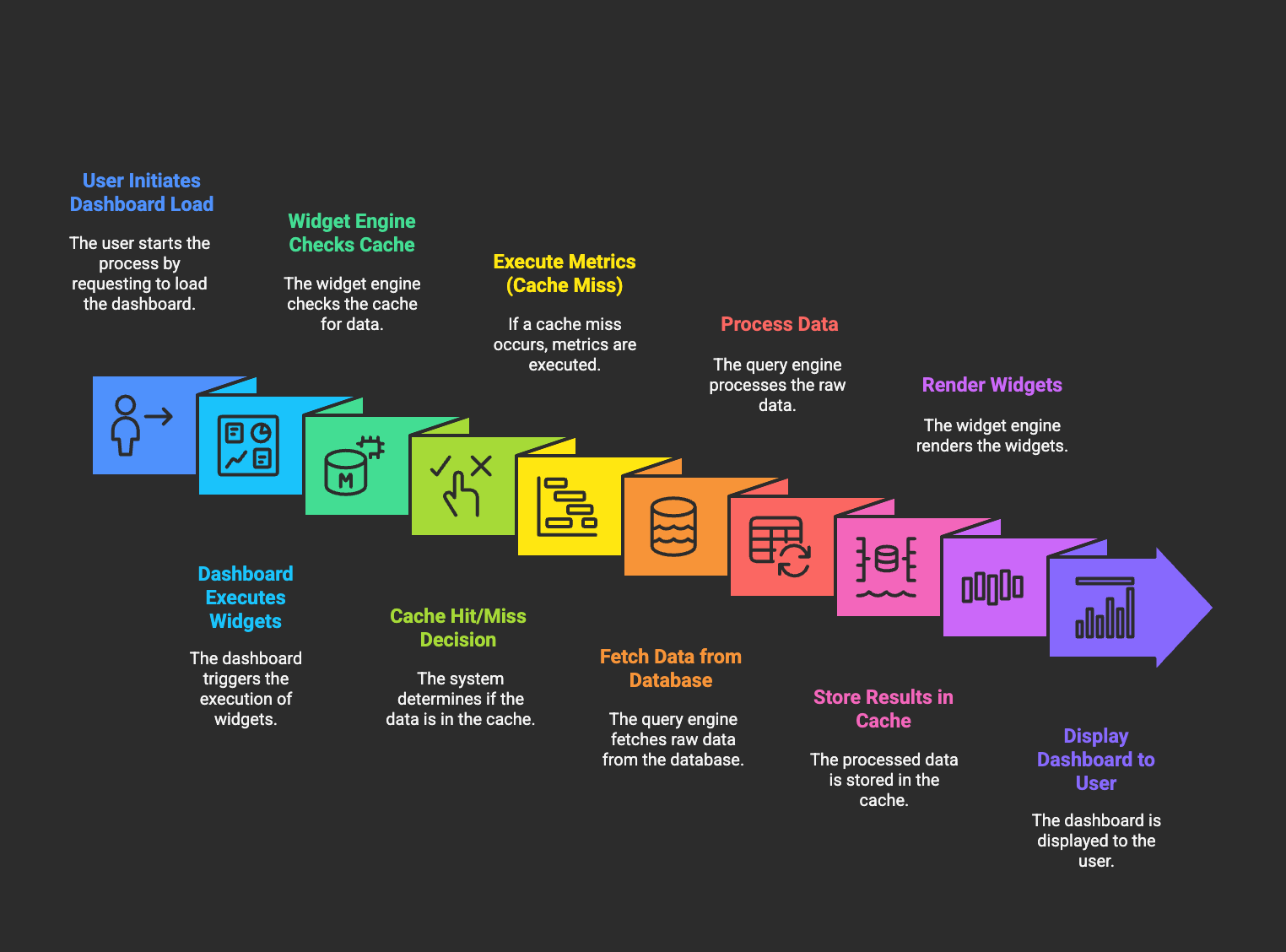

Dashboard Execution Flow

Database Architecture

Primary Database (PostgreSQL)

The main metadata database stores:

• Organization and workspace configurations
• User and consumer group definitions
• Data source configurations
• Semantic model definitions
• Query execution logs
• Dashboard and widget configurations

Schema Design:

• Uses SQLAlchemy 2.0 with async support
• UUID primary keys for scalability
• Proper indexing on frequently queried fields
• Foreign key relationships for data integrity
• Alembic migrations for schema evolution

External Data Sources

Cortex connects to multiple external databases:

• PostgreSQL/MySQL: Traditional relational databases
• BigQuery: Google Cloud data warehouse
• Snowflake: Cloud data platform

Connection Management:

• Connection pooling for performance
• Credential encryption and secure storage
• Timeout and retry mechanisms
• Health monitoring and failover

Security Architecture

Authentication & Authorization

• JWT-based authentication (planned)
• Role-based access control (RBAC)
• Workspace-level isolation
• Data source permissions

Data Security

• Connection credential encryption
• Query parameter sanitization
• SQL injection prevention
• Audit logging

API Security

• Input validation with Pydantic
• Rate limiting (planned)
• CORS configuration
• Security headers with SecWeb

Scalability Considerations

Horizontal Scaling

• Stateless API design enables load balancing
• Database connection pooling
• Query result caching with Redis
• Read replicas for analytics databases

Performance Optimizations

• Query optimization and indexing
• Connection pooling and reuse
• Result caching for frequently accessed data
• Async operations throughout the stack

Resource Management

• Memory management for large result sets
• Connection limits and timeouts
• Background job processing for heavy operations
• Resource monitoring and alerting

Deployment Architecture

Development Environment

• Local development with hot reload
• Docker containers for services
• Development databases with sample data
• Comprehensive logging and debugging

Production Environment

• Container orchestration (Kubernetes/Docker Compose)
• Load balancers and reverse proxies
• Production databases with backups
• Monitoring and alerting systems

CI/CD Pipeline

• Automated testing and validation
• Container building and deployment
• Database migration management
• Rollback capabilities

Monitoring & Observability

System Monitoring

• Health check endpoints
• Performance metrics collection
• Error tracking and alerting
• Resource utilization monitoring

Query Monitoring

• Query execution times
• Query success/failure rates
• Data source performance
• Cache hit/miss ratios

Business Monitoring

• User activity tracking
• Dashboard usage analytics
• Query pattern analysis
• System utilization trends

Future Extensibility

The architecture is designed for future enhancements:

• AI Agent Integration: Natural language query processing
• Advanced Analytics: Machine learning and predictive analytics
• Real-time Streaming: Event-driven data processing
• API Gateway: Enhanced security and rate limiting
• Service Mesh: Microservices communication
• Edge Computing: Distributed query execution

This architecture provides a solid foundation for building scalable, maintainable, and extensible analytics platforms while supporting the complex requirements of enterprise multi-tenant environments.
